How to print a pascal’s triangle in C with explanation

Published by admin on

C print pascal's triangle with explanation

Pascal’s triangle in C program:

Pascal’s triangle is a triangle where each entry is the sum of the two numbers directly above it. This is a symmetric triangle, i.e. the left side numbers are identical to the right side numbers. Below is a pascal’s triangle of height 10 :

                             1
                          1     1
                       1     2     1
                    1     3     3     1
                 1     4     6     4     1
              1     5    10    10     5     1
           1     6    15    20    15     6     1
        1     7    21    35    35    21     7     1
     1     8    28    56    70    56    28     8     1
  1     9    36    84   126   126    84    36     9     1

In this tutorial, we will learn how to print Pascal’s triangle in C program. The program will take the height as an input from the user and print it out.



Algorithm to print it :

It looks complex, but if you do understand the algorithm properly, you can write a program. Let’s divide the problem :

– We need to print numbers
– We need to print blank spaces

Consider one small triangle of height 5 :

      	 1
       1   1
     1   2   1
   1   3   3   1
 1   4   6   4   1

If we print * instead of blank space, it will look like :

****1
***1*1
**1*2*1
*1*3*3*1
1*4*6*4*1

Here,
height = 5
– for row = 1, total number of elements = 5, number is printed on position 5
– for row = 2, total number of elements = 6, number is printed on position 4,6
– for row = 3, total number of elements = 7, number is printed on position 3,5,7
– for row = 4, total number of elements = 8, number is printed on position 2,4,6,8
– for row = 5, total number of elements = 5, number is printed on position 1,3,5,7,9

so,
– The program will start i from 1 to rows
j will run from 1 to i + rows – 1
– If the total number of elements is odd, the numbers are also odd. Else these are even.
– If the value of j is greater than or equal to rows – i, we are starting to print numbers.
– One blank space is printed between two numbers.

The nth entry of Pascal’s triangle for row is :

row! / (n! * (row - n)!);



C program :

The complete C program to print the pascal triangle is as below :

#include <stdio.h>
long findFactorial(long);
long findEntry(long, long);
void printEntry(long);

int main()
{
    long rows;
    long i, j, current;
    long entry;

    printf("Enter the number of rows : \n");
    scanf("%ld", &rows);

    for (i = 1; i <= rows; i++)
    {
        current = 0;
        for (j = 1; j <= i + rows - 1; j++) { if ((i + rows - 1) % 2 != 0) { if (j >= (rows - i) && j % 2 != 0)
                {
                    printEntry(findEntry(i - 1, current));
                    current++;
                }
                else
                {
                    printf("   ");
                }
            }
            else
            {
                if (j >= (rows - i) && j % 2 == 0)
                {
                    printEntry(findEntry(i - 1, current));
                    current++;
                }
                else
                {
                    printf("   ");
                }
            }
        }
        printf("\n");
    }
    return 0;
}

void printEntry(long value)
{
    if (value < 10)
    {
        printf("  %ld", value);
    }
    else if (value < 100)
    {
        printf(" %ld", value);
    }
    else
    {
        printf("%ld", value);
    }
}

long findEntry(long row, long position)
{
    return findFactorial(row) / (findFactorial(position) * findFactorial(row - position));
}

long findFactorial(long n)
{
    if (n == 0)
    {
        return 1;
    }
    else
    {
        return n * findFactorial(n - 1);
    }
}

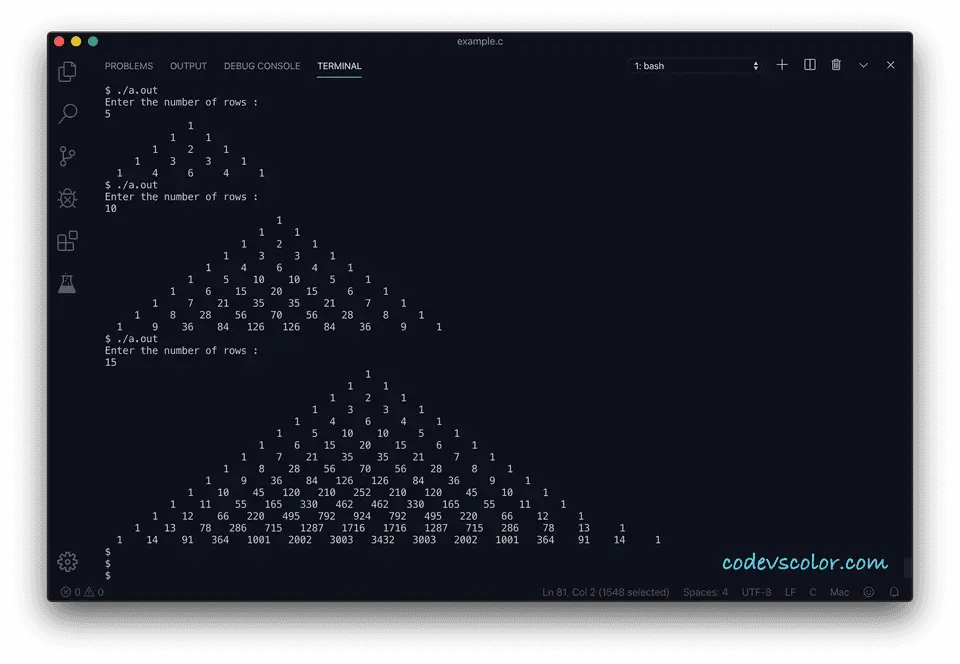

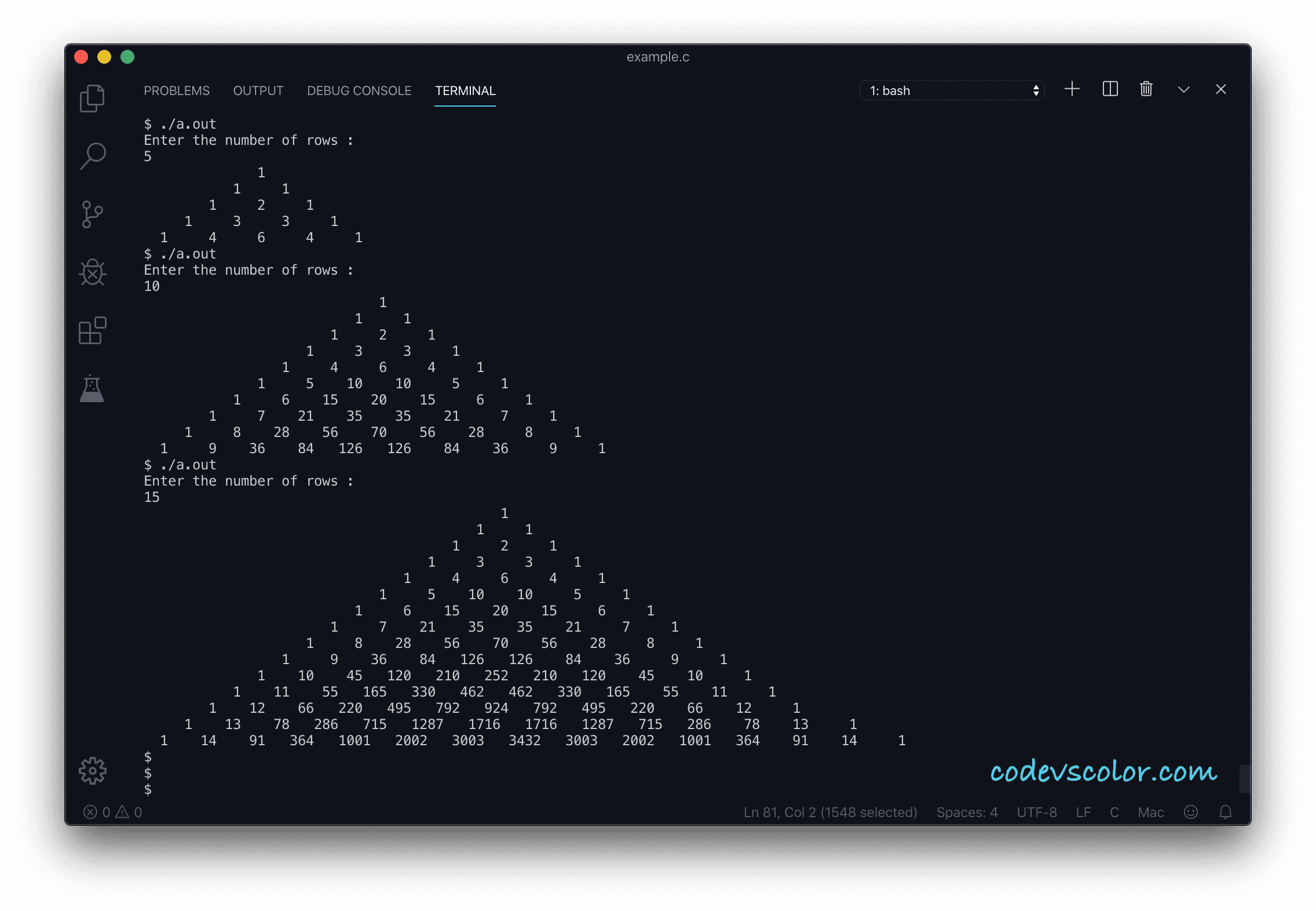

Sample Output :

Enter the number of rows :
5
              1
           1     1
        1     2     1
     1     3     3     1
  1     4     6     4     1


Enter the number of rows :
10
                             1
                          1     1
                       1     2     1
                    1     3     3     1
                 1     4     6     4     1
              1     5    10    10     5     1
           1     6    15    20    15     6     1
        1     7    21    35    35    21     7     1
     1     8    28    56    70    56    28     8     1
  1     9    36    84   126   126    84    36     9     1


Enter the number of rows :
15
                                            1
                                         1     1
                                      1     2     1
                                   1     3     3     1
                                1     4     6     4     1
                             1     5    10    10     5     1
                          1     6    15    20    15     6     1
                       1     7    21    35    35    21     7     1
                    1     8    28    56    70    56    28     8     1
                 1     9    36    84   126   126    84    36     9     1
              1    10    45   120   210   252   210   120    45    10     1
           1    11    55   165   330   462   462   330   165    55    11     1
        1    12    66   220   495   792   924   792   495   220    66    12     1
     1    13    78   286   715   1287   1716   1716   1287   715   286    78    13     1
  1    14    91   364   1001   2002   3003   3432   3003   2002   1001   364    91    14     1


C print pascal triangle

Note that the triangle will not print properly if the height is very high. We are using long and it will overflow the length of long.
